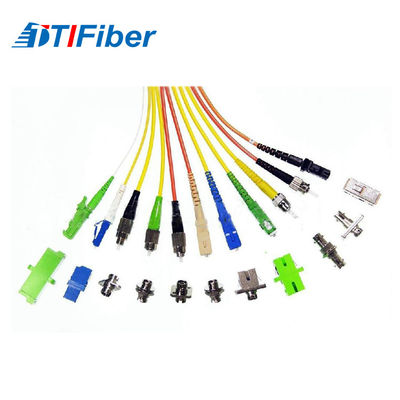

• Green blue black Fiber Optic Patch Cord SC / ST / FC / LC  APC / UPC
Green blue black Fiber Optic Patch Cord SC / ST / FC / LC  APC / UPC

Green blue black Fiber Optic Patch Cord SC / ST / FC / LC APC / UPC

Product Details:

Place of Origin: China
Brand Name: TTI
Certification: ISO RoHS UL CE
Model Number: Standard fiber jumper

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag in carton
Delivery Time: 2-5 days
Payment Terms: , T/T, L/C ,paypal
Supply Ability: 10000 pieces perday
Get Best Price Contact Now

Detail Information

High Light:

multimode fiber patch cord

,

fiber optical cable

Product Description

Standard connector with cable Fiber optic patch cord ,
adapter and connecotr fiber jumper


Quick Details

Place of Origin:
Guangdong, China (Mainland)

Brand Name:TTI

Color:Customized

Connector type:lc

Fiber Cable:Simplex or Duplex available

Cable size:0.9/1.8/2.0/2.4/3.0mm



Packaging & Delivery

Packaging Details

pe bag in carton with test cable



Delivery Time

2days



MANY HIGH QUALITY WITH LOWER PRICE IS MADE, MOST OF OUR CUSTOMERS WILL PLACE REPEAT ORDERS TO US!



Product Description


TTI can produce customized fiber optic patch cords at high quality,

Fast delivery and good price. The patch cords include


1. SC, LC, FC, ST, MU, MTRJ, D4, DIN Fiber Optic Patch Cord
2. E2000 Patch Cord
3. SMA Patch Cord
4. MPO/MTP Cable Assembly
5. ESCON, FDDI, LX.5 patch cord
6. Waterproof fiber optic patch cord
7. Armored Patch Cord
8. Multi fiber Breakout/Distribution/Mini Fan-out Patch Cord
9. Mode-conditioning Patch Cord
10. TOSA, ROSA receptable & Module Pigtail





Single Mode Fiber Optic Patch Cable manufactured by ANC International Co., Limited has

FC, SC, ST, LC, MU, MT-RJ, MPO, MTP, DIN, D4, SMA, ESCON, E2000, SC/APC, FC/APC, ST/APC,

LC/APC, E2000/APC, MTP/APC and MPO/APC terminations available. Rugged fiber optic patch cord and

10 Gig fiber optic patch cord is also available with RoHS compliant. Our skilled workers and quality

control department work closely together to guarantee every piece of our fiber optic patch cord is

excellent quality and looking. Our single mode fiber optic patch cables are fully compliant with

international standards and are with very good quality and competitive prices.





Specification

Simplex or Duplex fiber optic cable assemblies optional

Low insertion loss and high return loss

Cable lengths and cable types optional

PC or UPC or APC termination types



Features

Compliant with Telcordia and IEC standard

RoHS compliant for all Single mode fiber optic cable material



Usage

Telecommunication

Data Network

LAN, FTTX

CATV





Optical Performance Single-mode Multi-mode
Diameter(mm) 0.9,2.0,3.0
Fiber Cable Simplex or Duplex available
Insertion Loss(dB) ≤0.3(PC) ≤0.3(PC)
Return Loss(dB) ≥45(PC) ≥35(PC)
≥50(UPC)
≥(APC)
Exchangeability ≤0.2dB
Repeatability ≤0.2dB
Operating Temp. -20to+75℃
Storage Temp. -40to+85℃



Endface Geometry
Parameter 2.5mm ferrule 1.25mm ferrule
UPC APC UPC APC
Radius of Curvature 10-25mm 5-12mm 7-25mm 5-12mm
Apex Offset 0-50um 0-50um 0-50um 0-50um
Fiber Height -100~50nm -100~100nm -100~50nm -100~100nm
Angle -- 7.7-8.3 degree -- 7.7-8.3 degree
3D-Geometry Green blue black Fiber Optic Patch Cord SC / ST / FC / LC  APC / UPC 0









                  In there You can make any combination of the customization











Green blue black Fiber Optic Patch Cord SC / ST / FC / LC  APC / UPC 1





Certifications

Green blue black Fiber Optic Patch Cord SC / ST / FC / LC  APC / UPC 2Green blue black Fiber Optic Patch Cord SC / ST / FC / LC  APC / UPC 3Green blue black Fiber Optic Patch Cord SC / ST / FC / LC  APC / UPC 4Green blue black Fiber Optic Patch Cord SC / ST / FC / LC  APC / UPC 5





WYH CHOOSE US

l Any inquiries or questions will be replied within 24 hours.

l Professional manufacture with 10 years production experience. Welcome to visit our website:www.ttifiber.com

l China factory OEM/ODM available

l High quality, reasonable& competitive price, fast lead time

l After-sale service: All the products will have been 100% full test before shipping, also with 2 years warranty.

l Fast delivery: samples order within 1 day, and 3-7 days for bulk orders.

l Payment: You can pay us via: T/T, , Paypal, or others.

l Shipping: By express: UPS,DHL,FexEx,TNT,EMS…;By air; By sea; Or you also can choose your own shipping forwarder.
