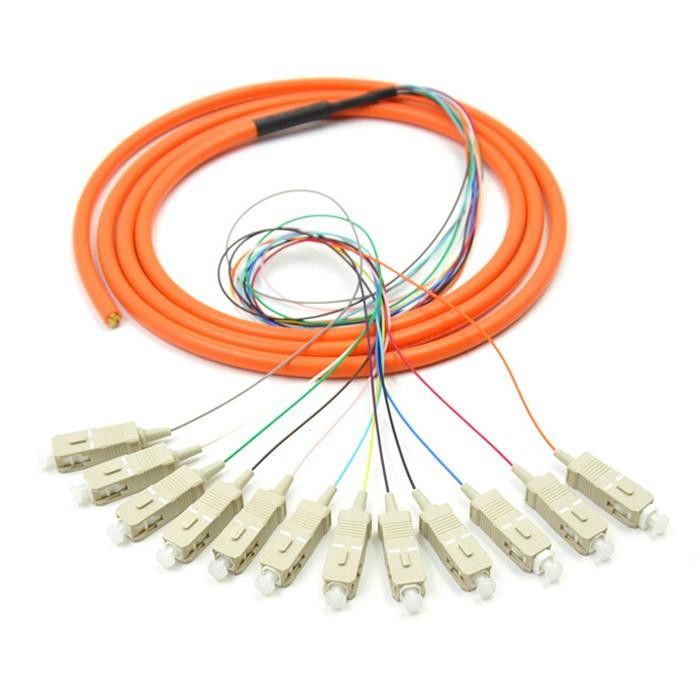

Singlemode ST LC optical fiber patch cord cables with CE / ROHS Approval
Product Details:
Place of Origin: | China |
Brand Name: | TTI |
Certification: | CE/ROHS |
Model Number: | SC-C |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | boxes |
Delivery Time: | 5-7 work days |
Payment Terms: | L/C, T/T, D/P, , ,paypal |
Supply Ability: | 1000pieces / week |
Detail Information |
|||
Name: | Fiber Optic Patch Cord | Type: | FC |
---|---|---|---|
Fiber: | Singlemode | Colour: | Yellow |
Application: | CATV | ||
Highlight: | multimode fiber patch cord,fiber optical cable |
Product Description
Singlemode ST LC optical fiber patch cord cables withCE / ROHS
We can offer you Singlemode / multimode ,FC /SC /LC / ST / MU / MTRJ / MPO , APC / PC / UPC optical fiber patch cords
They have some feathers
-Ceramic Ferrule;
- High return loss;
- Low insertion loss;
-Good repeat-ability and and ex-changeability;
- Excellent Polished and 100% tested;
-Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
We often use them here
Local Area Network (LAN)
-Data communication network
-Telecommunication optical transmission network
-Optical access network(OAN)
-Active device termination
-Fiber optics data transmission(FODT)
-Test Equipment
-CATV
ter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | |||||||
SM | MM | SM | MM | SM | MM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | |||||||
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | |||||||
Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | |||||||
Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 |
