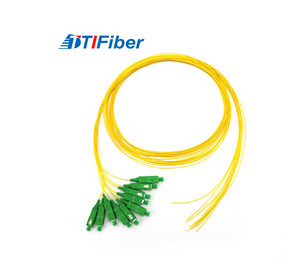

• FTTH ST FC PC UPC APC Optical Pigtail Single Mode Simplex 0.9mm
FTTH ST FC PC UPC APC Optical Pigtail Single Mode Simplex 0.9mm

FTTH ST FC PC UPC APC Optical Pigtail Single Mode Simplex 0.9mm

Product Details:

Place of Origin: Guangdong, China
Brand Name: TTI
Certification: ROHS, CE
Model Number: FPG

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Western Union, PayPal
Supply Ability: 7000pcs/Day
Get Best Price Contact Now

Detail Information

Jacket: PVC/LSZH, PVC Or LSZH Color: Blue, Yellow/orange/Aqua, Aqua, Yellow, Orange
Length: 1M/2M/3M So On Connector Type: SC/LC/ST/FC
Insertion Loss: ≤0.20, MM≤0.75dB, SM≤0.50dB, ≤0.1dB, IL<0.2db Connector: FC, SC, SC/APC (LC, LC, FC For Choice)
Fiber Type: SM 9/125 G652D, OS1, 9/125 Tight Buffered Fiber Single Mode Simplex, G652D/G657A1/G657A2 Etc., G657A1 Etc. Cable Diameter: 0.9/2.0/3.0mm, 3mm, 0.9mm, 2mm
Jacket Material: Customize, Can Be Customized, 1M; 2M; 4M Etc., 10Meter
High Light:

UPC APC Optical Pigtail


FTTH Optical Pigtail


FTTH pigtail fiber optic

Product Description

FTTH Fiber Optic Pigtail LC SC ST FC PC UPC APC Simplex SInglemode SM 0.9mm Fiber Optic Patch Cord Pigtail



Quick Detail:

  1. Cable jacket: PVC, LSZH, OFNP, OFNR
  2. Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
  3. Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
  4. Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
  5. Cable length: 1m, 2m, 3m, 5m....customized
  6. Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized






Pigtail is a piece of fiber with connector terminated just on one end, used for terminating a fiber by fusion splicing the fiber with a pigtail or directly terminating the fiber with a fast connector to make a fiber patch cord.

LC/UPC Simplex Fiber Optic Pigtails are ultra-reliable components featuring low insertion loss and high return loss.



  • 1. Low Insertion loss
  • 2. High return loss
  • 3. Good Repeatability
  • 4. Good Interchange
  • 5. Excellent Environmental Adaptabilit



  • 1. Communication rooms
  • 2. FTTH (Fiber to The Home)
  • 3. LAN (Local Area Network)
  • 4. FOS (fiber optic sensor)
  • 5. Fiber Optic Communication System
  • 6. Optical fiber connected and transmitted equipment
  • 7. Defense combat readiness




Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
Fiber Protrusion ≤50nm ≤100nm N/A
Fiber Under Cut ≤100nm ≤100nm N/A
Apex offset ≤50um
Mechanical Exchangeability ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C


Ordering Information:


Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC or APC

Step 3: Fiber Type: Single Mode(SM) or Multimode

Step 4: Cable Core: Simplex or Duplex

Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm

Step 6: Cable Length: 1, 2, 3 meter or customized

Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…

Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...



  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)


Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.
  4. Our patch cord warranty period is one year.



One piece per PE bag with stick label (we could add customer's logo in the label.)
