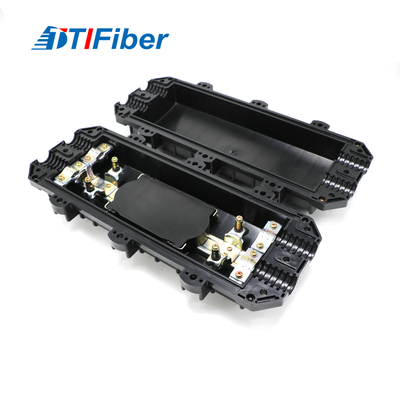

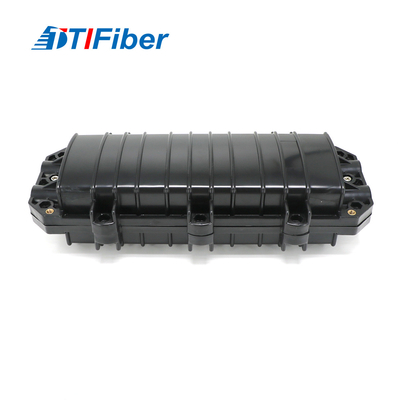

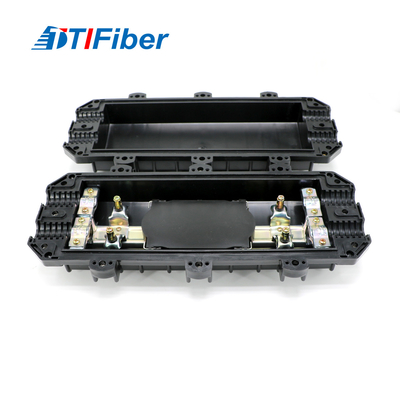

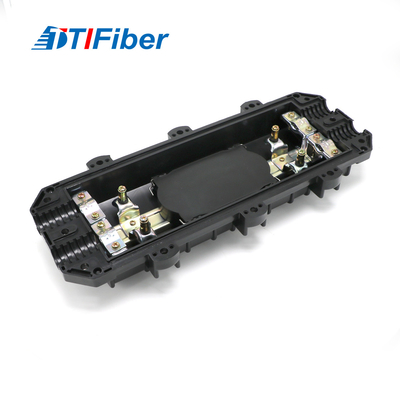

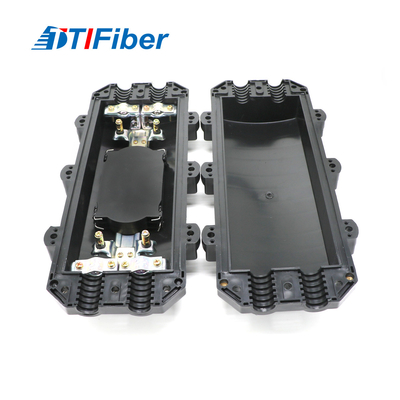

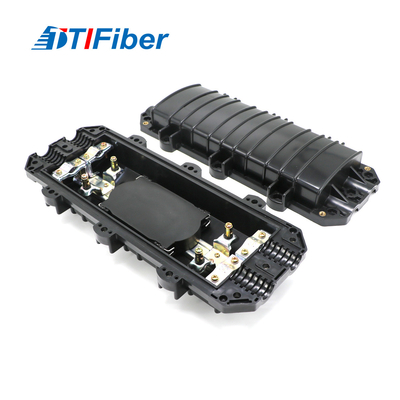

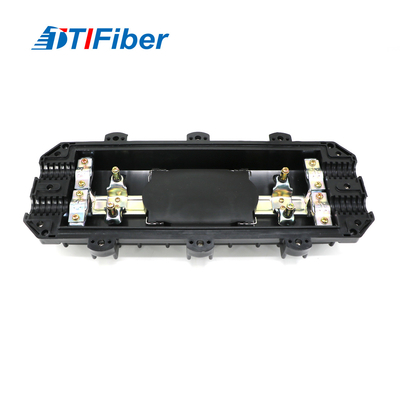

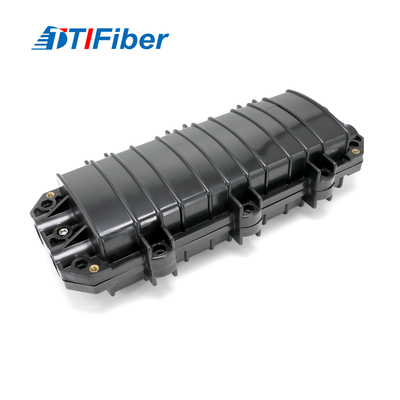

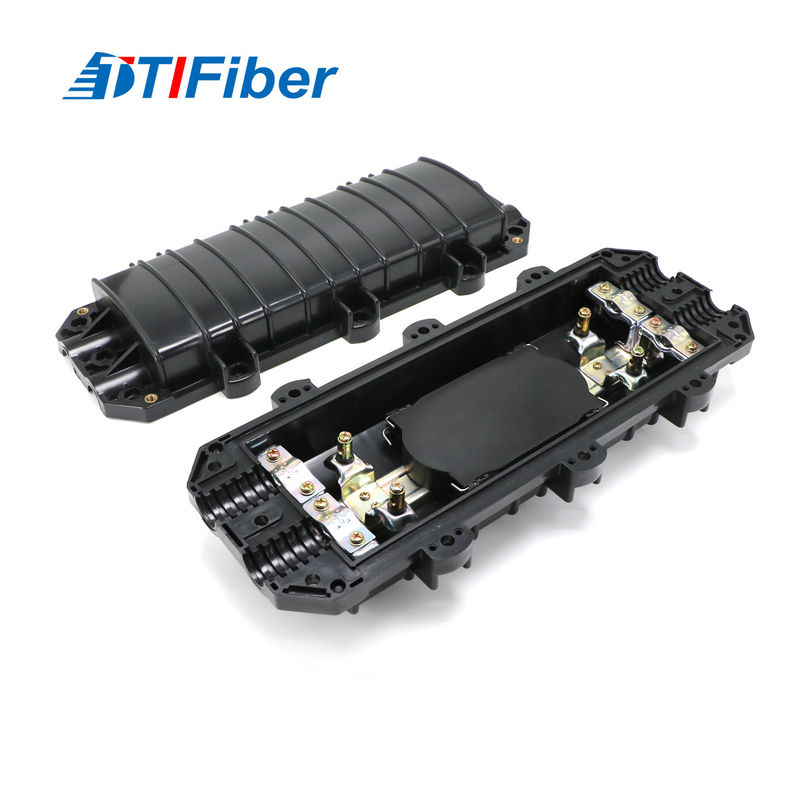

Fiber Optic Splice Closure Horizontal In Line Type
Product Details:
| Place of Origin: | China |
| Brand Name: | TTIFIBER/OEM/ODM |
| Certification: | CE, RoHS, ISO9001 |
| Model Number: | TTI921 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 5-25 Days, it also depends on order qty. |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Color: | Black | Material: | ABS And PP, PC ABS, Excellent Project Plastic, Aluminum Alloy, Plastic + Metal |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network, FTTA FTTH BBU RRU RRH LTE & Base Station, For ODF Internal Link, For Room Equipment Internal Link, FTTH/Test Equipments/TV/LAN/Telecommunication Equipments | Product Name: | Fiber Optic Closure |
| Type: | Horizonal/Dome Type | OEM: | Support |
| Operating Temperature: | -40°C~+70°C., -40℃-60℃ | ||
| Highlight: | In Line Fiber Optic Splice Closure,Horizontal In Line Closure Fiber Optic,Black Fiber Optic Splice Closure |
||
Product Description
High Quality Horizontal In-line Type Fiber Optic Joint Box Fibre Optical Splice Closure
Specification:
Suitable for cable whose diameter is within 22mm.It can be used in aerial, duct and direct buried application as well as the all-plastic local cable connection.
Mainly in a variety of structural cable for the overhead, piping, buried and other laying way through the direct and branch connection.
The box is made of imported reinforced plastic, high strength, corrosion resistance, terminal box for the structure of the cable terminal of the terminal room, the structure is mature, sealed and reliable, easy construction. Widely used in communications, network systems, CATV cable television, cable network systems and so on. The right side of the two into the two out of the box;
The box is made of imported reinforced plastic, high strength, corrosion resistance, terminal box for the structure of the cable terminal of the terminal room, the structure is mature, sealed and reliable, easy construction. Widely used in communications, network systems, CATV cable television, cable network systems and so on. The right side of the two into the two out of the box;
Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way
It is widely used for communication, network system, cabled TV of CATV, the fiber optic cable by network.
Features:
• Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive
• Made of material with good capability of outdoor environment resistance and high durability
• Having reliable cable fixing and grounding facilities
• Using self-adhesive isolative tape and glue belt to seal
• To use rotating method to connect fiber organizer cassette result in easy installation
• Mechanical design suitable for installing, fiber splicing storage and cable connection
• Compact and tight
Main Technical Parameters for fiber optic splice closure
• Applicable environment temperatures: -40°C~+65°C
• Air pressure: 70~106Kpa
• Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m
• Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 50N.m (±90°)
• Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours
• Insulation resistance≥2×104MΩ,resistance to 15KV/min without break down
• Life expectancy: 25 years
| Dimension ( mm ) | 460×180×108 |
| Weight ( Kg ) | 3.5 |
| Cable Diameter (mm) | Φ7-Φ18 |
| Cables Entry & Exit | 2 & 2 |
| Max Capacity of Cores Per Splice Tray | 12 (Single)/24 (Single) |
| Max Capacity of Splice Trays/ Closure | 5 (12cores/tray) / 4 (24 cores/tray) |
| Max Capacity of Cores | 60 Cores (12cores/tray) / 96 Cores (24 cores/tray) |
| Sealing Structure of Shell | Sticky Cincture or Silicon Gum Material |
Factory Show:
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance: Stable high quality.
(3) Customers solutions: Quick.
(4) Win-Win Price: Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.
4. What's the method of shipment?
We accept all shipment, such as Delievery, ocean transport, land transport, airport transport.
