4core 12core 24core 48core Fiber Optic Distribution Box ABS
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE/ISO9001 |
| Model Number: | distribution box |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | package with box |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 100pcs/day |
|
Detail Information |
|||
| Item: | Distribution Box | Material: | ABS |
|---|---|---|---|
| Suitable Adapters: | SC/LC Adapters | Available Cable: | Outdoor Or Indoor Cable |
| Installation: | Wall Mount Or Pole Mount | Connector Type: | SC / LC |
| Splice Capacity: | 24 Fibers | MOQ: | 1pcs |
| Application: | FTTH | Warranty: | 10 Years |
| High Light: | 24 core Fiber Optic Distribution Box,48core Fiber Optic Distribution Box |
||
Product Description
Fdb Equipment Terminal Box 4core 12core 24core 48core Fiber Optic Distribution Box Fiber Splitter Box
Introduction
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Technical specifications
1. Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
2. Main technical datasheet:
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3. Thunder-proof technical datasheet:
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC); IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V
Application Of Fiber Optic Distribution Box
CATV Network
FTTH access network
Telecommunication network
Data communication network

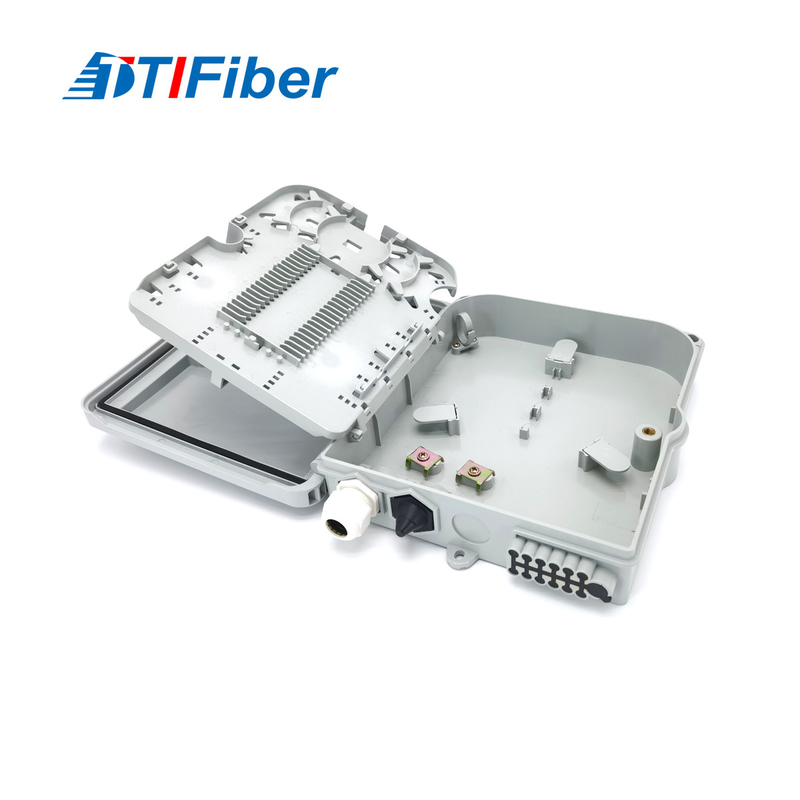

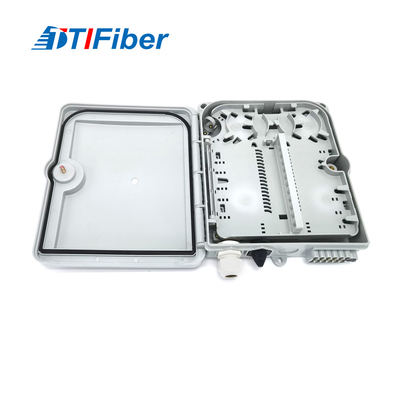

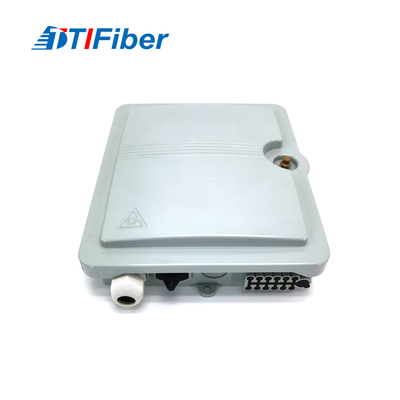

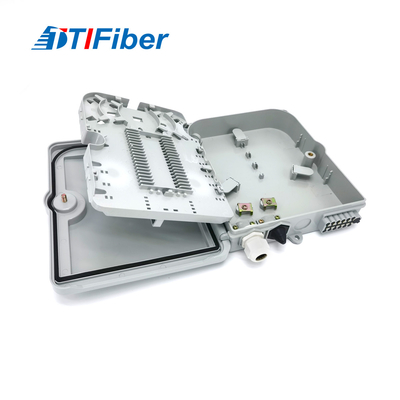

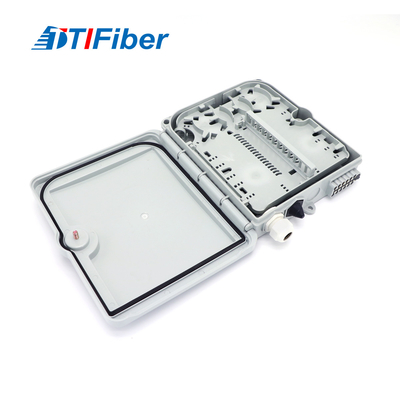

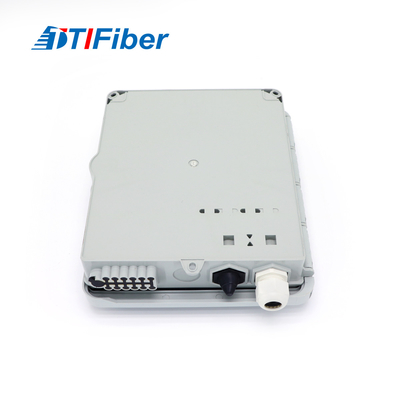

Pictures Display:
