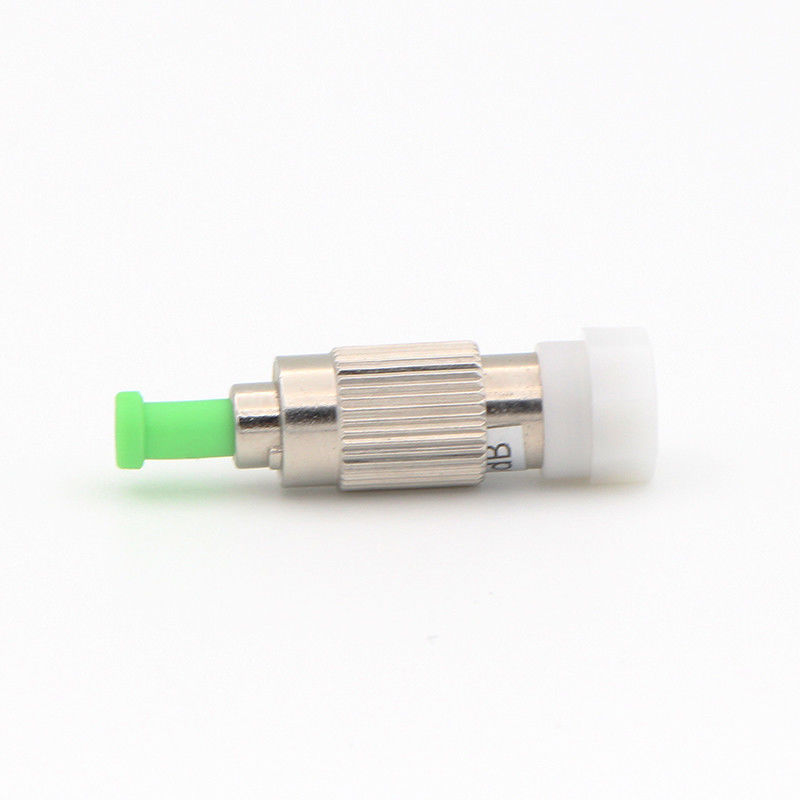

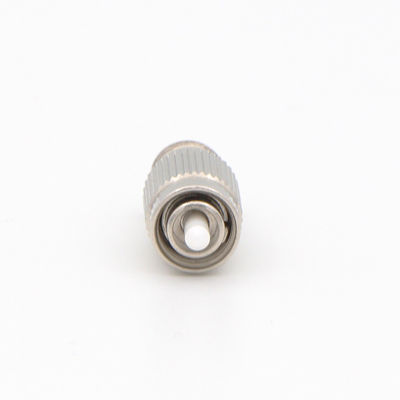

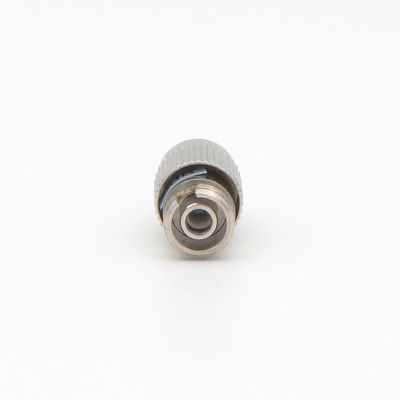

Fixed / Plug Type Fiber Optic Attenuator Plastic FC/APC Male To Female Singlemode
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE RoHS ISO9001 |
| Model Number: | FC Attenuator |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag and carton |
| Delivery Time: | 5-7 work days |
|
Detail Information |
|||
| Application: | Telecommunication | Color: | Customized |
|---|---|---|---|
| Fiber Type:: | SM / MM | Material: | Plastic |
| Optical Connector: | FC SC LC ST | Fiber Mode: | Singlemode Or Multimode |
| Highlight: | variable optical attenuator,inline optical attenuator |
||
Product Description
Fiber Optic Attenuator Fixed type Or Plug type FC/APC Male To Female Singlemode
Specification
Operating wavelength: SM:1200-1600nm or 1310nm, 1550nm&MM:850nm,1300nm
Return Loss: Less than 50dB(SPC)
Less than 55dB(UPC)
Less than 65dB(APC)
Attenuation Accuracy: +/-0.5(1-10) or +/- 1.0(11-30)
Polarization Dependent Loss: Less than 0.2dB
Maximum Optical Input Power: 200mW
Operating Temperature: -40 ~ +80 C
| Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | ≥ 50 db (PC) |
| ≥ 55 db (UPC) | |
| ≥ 65 db (APC) | |
| Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
| +/-10% for 6 to 30db attenuation | |
| Polarization Dependent loss | ≤ 0.2db |
| Maximum optical Input power | 200mW |
| Operating Temp Range | -40 to + 80 degree |
Ordering Options
| Connector Type | Application | Wavelength | Attenuation |
| FC |
PC UPC APC |
1310nm 1550nm 1310/1550nm |
1, 2, 3, ….., 25db |
Application
CATV
Telecommunication networks
Test equipment
Metro
Local Area Networks(LANs)
Data processing networks
Multimedia
Gigabit Ethernet
Active device/Transceiver
Features
Bellcore Compliant
Wavelength Independent (DWDM)
Durability (well over 100mw)
Simple and Reliable structure
Ordering Information:
LC/UPC-SM-5dB-Female&Male
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300n
