Ceramic Fiber Optic Ferrule Singlemode Multimode For LC/SC/ST/FC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE . ISO9001 |
| Model Number: | fiber ferrule |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag |
| Delivery Time: | 2-3 working days |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 20000pcs/day |
|
Detail Information |
|||
| Product Name: | Fiber Ferrule | OD: | 1.25 / 2.5mm |
|---|---|---|---|
| Material: | Ceramic | Connector Type: | SC / LC /ST /FC |
| Core Type: | Singlemode / Multimode | Package: | PE Bag |
| Highlight: | ceramic ferrule,stainless steel ferrule |
||
Product Description
Ceramic Fiber Optic Ferrule Singlemode Multimode For LC/SC/ST/FC Connector
Specification:
Outer diameter: (1.2499±0.0005)mm
Inner diameter: (0.125+0.001/-0)mm
Concentricity: 1.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:(6.50±0.05)mm
Inner diameter: (0.125+0.001/-0)mm
Concentricity: 1.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:(6.50±0.05)mm
Features:
Good compatibility
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC
Application:
Telecommunication
CATV
LAN (including FTTx)
Data network
CATV
LAN (including FTTx)
Data network
Specification
| Parameter | Single Mode | Multi Mode |
| Outside Diameter | Ø2.4990 | |
| OD Tolerance | ±0.0005 | ±0.001 |
| Inner Diameter | Ø0.125 | |
| ID Tolerance | +0.001/0 | +0.004/0 |
| Ferrule Length | 10.5±0.05 | 10.5+0.05/-0.1 |
| Concentricity | ≤0.001 | ≤0.004 |
| End Curve Radius | 15+10/-5 | |

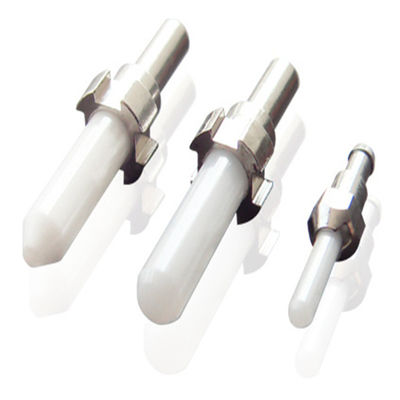

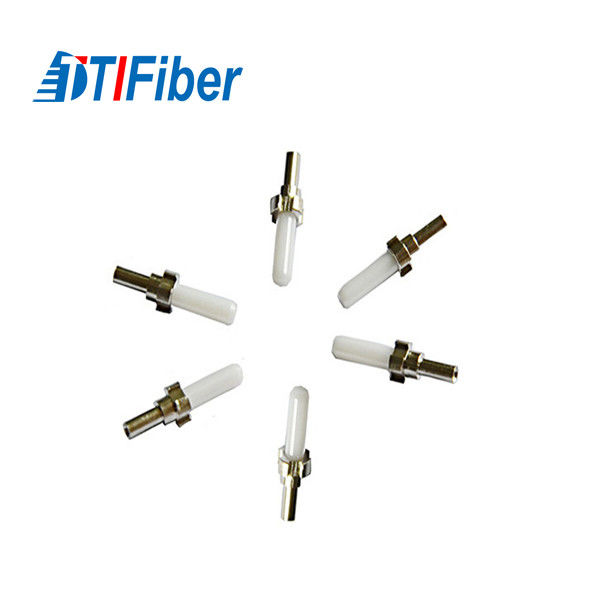

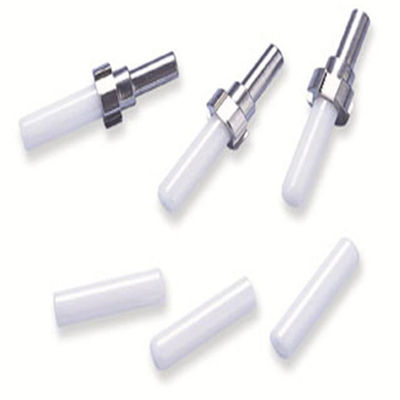

Product pictures
