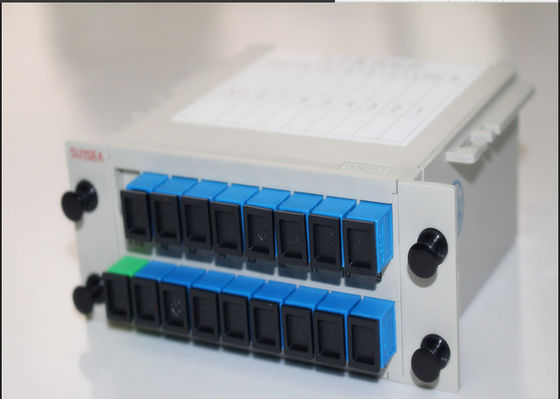

1x16 LGX Box Cassette Inserting PLC Splitter , 16 Ports Fiber Optical PLC Splitter
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | TTI |
| Certification: | ISO |
| Model Number: | 1x16 lgx splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | in cartons |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , |
| Supply Ability: | 1000pcs/day |
|
Detail Information |
|||
| Connector: | SC/UPC | Port: | 16 |
|---|---|---|---|
| Wavelength: | 1260-1650 | Cable: | 0.9mm |
| High Light: | optical fiber splitter,optical audio splitter |
||
Product Description
1x16 LGX Box Cassette Inserting PLC Splitter , 16 Ports Fiber Optical PLC Splitter
Features
1.Excellent Mechanical,Small Size
2.High Reliability
3.Low insertion Loss and low Polarization Dependent loss
4.High channel counts
5.Excellent Environmental Stability and Widely Used
Applications
1.FTTx Deployments(GPON/BPON/EPON)
2.Cable television (CATV)
3.Local area networks (LAN)
4.Test equipment
5.Passive optical networks(PON)
Specifications
| 1 1xN (with connector) | |||||||||||||
| (Number of Channels) | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| (Operating Wavelenth) | 1260 to 1650 | ||||||||||||
| P Level Insertion Loss | 4 | 7.4 | 10.5 | 13.7 | 17 | 20.3 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 | |
| S Level Insertion Loss | 4.2 | 7.6 | 10.7 | 14 | 17.3 | 20.7 | 4.6 | 7.9 | 11.2 | 15 | 18.1 | 21.7 | |
| (Uniformity) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 | |
| (PDL) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | |
| (Return Loss) | more than 55 | ||||||||||||
| (Directivity) | more than 55 | ||||||||||||
| (Type of fiber) | ITU G657A | ||||||||||||
| (Operating temperature) | -40 to 85 | ||||||||||||
| (Pigtail length) | 1m or 1.5m or customized | ||||||||||||
Ordering Information
|
PLCS
|
Port Type
|
Cable Type | Fiber Length | Connector Type | Package Style |
|---|---|---|---|---|---|
|
PLC Splitter |
1*4 1*8 1*16 1*32 1*64 2*32 Others Specify |
0.25mm Bare fiber Ribbon Fiber Fan-out with 0.9mm Loose Tube 2.0mm Cable 3.0mm Cable |
1 meter 2 meter 3 meter Others specify |
FC/APC FC/PC SC/APC SC/PC ST/UPC LC/APC Others Specify |
Stainless steel sleeve Plastic Module LGX box 19 1U Rack Mount Others Specify |
