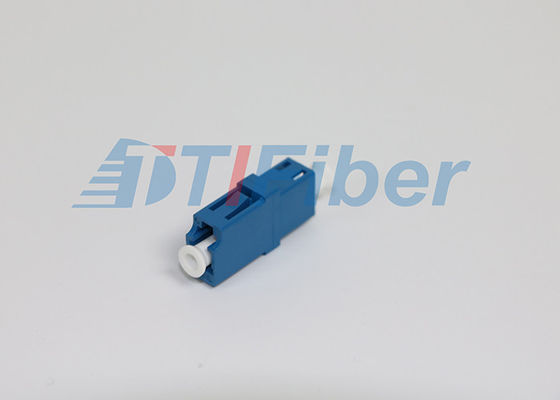

High Stability LC Fiber Optic Adapter For Lan / Wan , Good Temperature Performance
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | ALC-SX |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25pcs/Case |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , PayPal |
| Supply Ability: | 10000 pieces per day |
|
Detail Information |
|||
| Operating Temperature Range: | -40°C ~ +80°C | Type: | Simplex |
|---|---|---|---|
| Sleeve: | Zirconia, Bronze | Housing: | Plastic, Metal |
| Structure: | With Flange, Without Flange | Color: | Blue, Green Or Customized |
| High Light: | fibre optic adapter,optical fiber adapter |
||
Product Description
High Stability LC Fiber Optic Adapter For Lan / Wan , Good Temperature Performance
| Description: |
| Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together. They are available for use with either singlemode or multimode patch cables.GST provides an extensive line of fiber optic adapters that offer superior low loss performance with high repeatability. |
| Feature: |
|
| Application: |
|
Specification:
Type | SC/FC/ST/LC/MU/MTRJ/MPO |
| Mode | SM,MM |
| Insertion Loss | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB | ≤0.2dB |
| Material of sleeve | >50N |
| Working Temperature | Zirconia or Bronze |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
 | |
