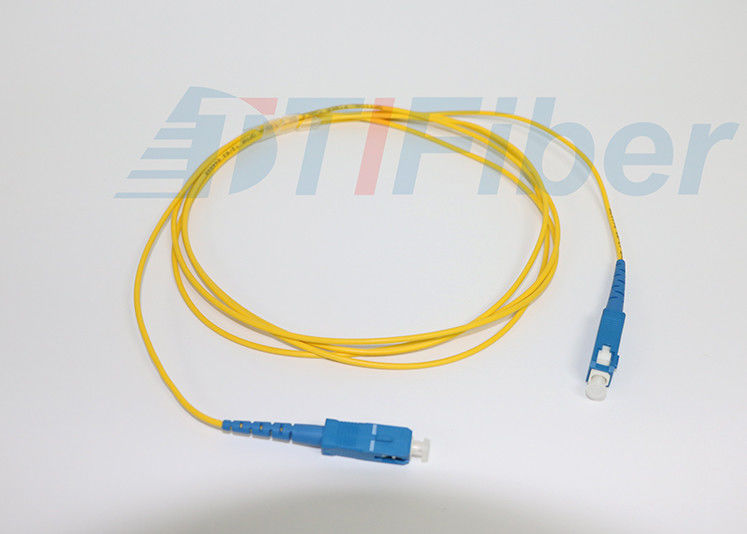

SC / UPC Singlemode Duplex Fiber Optic Patch Cord with G657A Fiber

SC / UPC Singlemode Duplex Fiber Optic Patch Cord with G657A Fiber

Product Details:

Place of Origin: China Mainland
Brand Name: TTI
Certification: ROHS, SGS, ISO9001
Model Number: SC/UPC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1pcs/PE bag
Delivery Time: in 2-4 days
Payment Terms: T/T, , PayPal, Monthly
Supply Ability: 7000pcs/Day
Get Best Price Contact Now

Detail Information

Connector: SC Inner: Ceramic
Jacket: PVC, LSZH, OFNP, OFNR Cable Diameter: 0.9mm,2.0mm Or 3.0mm
Ferrule End -face: UPC Cable Length: 1M,2M, 3M,etc.Can Be Customized
Fiber Mode: Siglemode Cable Core: Simplex,Duplex
High Light:

multimode fiber patch cord

,

fiber optic network cable

Product Description

SC / UPC Singlemode Duplex Fiber Optic Cable with G657A Fiber



Features:

  1. Good durability
  2. Good exchangeability
  3. High temperature stability
  4. Low insertion loss and back reflection loss ---Superior Quality Standard PC/UPC/APC Polishing

Applications:

  1. Gigabit Ethernet; Active device termination;
  2. Telecommunication networks; Video;
  3. Optical fiber CATV
  4. FTTX+LAN



Specification:



Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
Fiber Protrusion ≤50nm ≤100nm N/A
Fiber Under Cut ≤100nm ≤100nm N/A
Apex offset ≤50um
Mechanical Exchangeability ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C



Packing:



One piece per PE bag with stick label (we could add customer's logo in the label.)



Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
