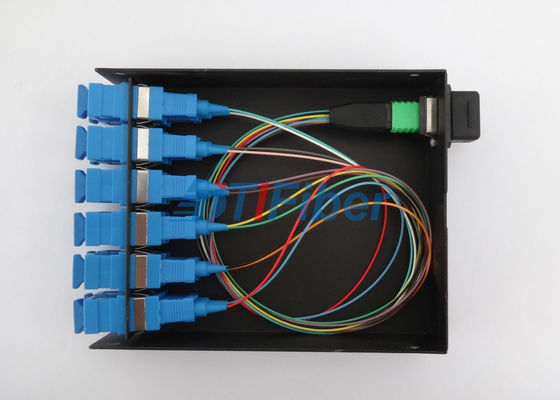

MPO to SC Fiber Optic Patch Cord 12 Fiber For MPO Cassettes

MPO to SC Fiber Optic Patch Cord 12 Fiber For MPO Cassettes

    • MPO to SC Fiber Optic Patch Cord 12 Fiber For MPO Cassettes
    • MPO to SC Fiber Optic Patch Cord 12 Fiber For MPO Cassettes
    • MPO to SC Fiber Optic Patch Cord 12 Fiber For MPO Cassettes
    • MPO to SC Fiber Optic Patch Cord 12 Fiber For MPO Cassettes
  • MPO to SC Fiber Optic Patch Cord 12 Fiber For MPO Cassettes

    Product Details:

    Place of Origin: China Mainland
    Brand Name: TTI
    Certification: ROHS, ISO9001,SGS
    Model Number: FPC-MPO

    Payment & Shipping Terms:

    Minimum Order Quantity: 20
    Price: Negotiation
    Packaging Details: 1pcs/PE bag
    Delivery Time: in 2-4 days
    Payment Terms: T/T, Western Union, ESCROW, PayPal, Monthly settlement
    Supply Ability: 20000pcs/week
    Detailed Product Description
    Model: MPO-SC Fiber Patch Cord Polished: UPC, APC
    Fiber Mode: SM, MM, OM3, OM4 Insertion Loss: < 0.35dB
    Returen Loss: UPC>50dB, A[C>60dB Fiber Count: 12 Core
    Cable Jacket: LSZH, OFNP Cable Color: 12colors
    Cable Type: 0.9mm Fiber Cable

    MPO to SC Fiber Optical Patch Cord 12 Fiber For MPO Cassettes







    Features:



    1. MPO patch cords are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped
    2. MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.

    3. MPO patch cables are available in multi-mode and single-mode fiber cable.
    4. Small Form Factor, 12Fibers or 24Fibers push/pull optical connectors
    5. Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating, compliant with Directive 2002/95/EC (RoHS) and REACH SvHC.

    6. 100% tested (test data supplied) - Assures verified optical performance for improved network integrity.



    Applications:

    Performance of Assemblies MTP / MPO Termination



    Specification:



    Type/Performance

    Singlemode(APC polish)

    Multimode(PC / Flat Polish)

    Standard

    Elite Low Loss

    Standard

    Elite Low Loss

    Maximum Insertion Loss

    ≤ 0.75dB

    ≤ 0.35dB

    ≤ 0.60dB

    ≤ 0.35dB

    Return Loss

    ≥ 50dB

    N/A

    Operating Temperature

    -40°C to 80°C

    40°C to 80°C

    Test Wavelength

    1310nm

    850nm



    Packing:

    PE bag with stick label (we could add customer's logo in the label.)



    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

    Our service:

    1. All products are 100% fully tested by our technical expertise.
    2. Standard and customized OEM products from small to large quantity are welcome.
    3. Compliance with global environmental industry with RoHS and SGS standards.
