LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot

LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot

    • LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot
    • LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot
    • LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot
  • LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: TTI
    Certification: ROHS, SGS
    Model Number: FC-Bent

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiation
    Packaging Details: 200pcs/PE bag
    Delivery Time: in 2-4 days
    Payment Terms: T/T, Western Union, Monthly settlement
    Supply Ability: 10000pcs/Day
    Contact Now
    Detailed Product Description

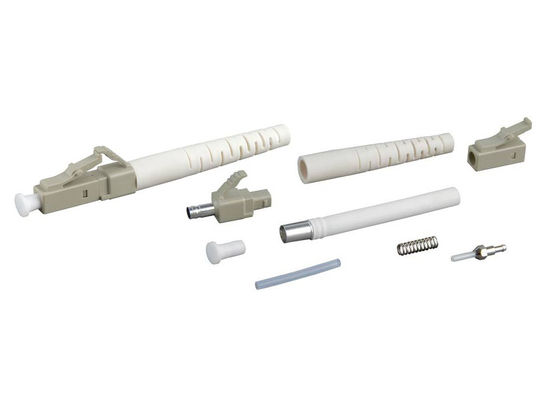

    LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot



    Qick Detail:

    1. Name: OM3 Fiber connector
    2. Ferrule size: 1.25mm, 2.5mm
    3. Ferrule End-face: APC UPC
    4. Cable diameter: 0.9mm, 2.0mm, 3.0mm
    5. Type: simplex, duplex
    6. Material: Plastic, Zinc Alloy, Bronze



    Features:

    1. Easy installation
    2. Competitive price
    3. Telcordia style boots
    4. Good durability



    Applications:

    1. Telecommunication
    2. Computer networks
    3. CATV networks
    4. Active device termination



    Specification:



    Insertion loss SM ≤0.20 dB
    MM ≤0.25dB
    Return loss P C ≥50 dB
    UPC ≥55 dB
    APC ≥65 dB
    Durability <0.20 dB typical change, 1000 mating
    Ferrule hole sizes SM: 125.0+1/-0um concentricity:≤1.0um
    125.5+1/-0um ≤1.0um
    126.0+1/-0um ≤1.0um
    MM:125 um concentricity:1≤3 um
    127 um ≤3 um
    128 um ≤3 um
    Operating temperature -40~80°C



    Ordering Information:



    Step 1: Connector Type: FC,SC,LC,ST,MTRJ,MU,MPO,D4,DIN,SMA

    Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm

    Step 3: Ferrule End-face: PC, UPC, APC

    Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)

    Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua



    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)



    Our service:

    1. Standard and customized OEM products from small to large quantity are welcome.
    2. Compliance with global environmental industry with RoHS and SGS standards.
    3. All products are 100% fully tested by our technical expertise.
    4. We could add customer's logo in the label.



    LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot

    LC Duplex 3.0mm Fiber Optic Connector with 45degree Bent Boot
