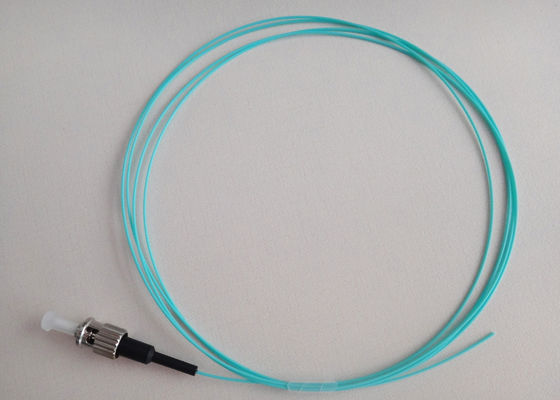

Aqua Fiber Optic Pigtail for OM3 / OM4 Fiber Optic Cable Lead

Aqua Fiber Optic Pigtail for OM3 / OM4 Fiber Optic Cable Lead

Product Details:

Place of Origin: Guangdong, China
Brand Name: TTI
Certification: ROHS, SGS
Model Number: FP-OM4

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Payment Terms: T/T, , Monthly settlement
Supply Ability: 7000pcs/Day
Get Best Price Contact Now

Detail Information

High Light:

single mode pigtail

,

pigtail fibra optical

Product Description

Aqua Fiber Optic Pigtail for OM3 / OM4 Fiber Optic Cable Lead







Quick Detail:

  1. Name: OM4 Fiber Optic Pigtail
  2. Connector: FC, LC, ST, SC, MTRJ, MU, MPO, D4, SMA
  3. Mode: OS1, OS2, OM1, OM2, OM3, OM4
  4. Fiber end-face: PC, UPC, APC
  5. Fiber brand: YOFC, Corning
  6. Fiber mode: G652D, G657A1, G657A2, G657B



Features:

  1. 100% test before shipment
  2. Low insertion loss and high return loss
  3. Serialized & Individual Test Records
  4. Meets ROHS and Bell core GR 326-core standards
  5. Custom Configurations Available at No Extra Charge
  6. Available in fiber bunch, ribbon fan-out, pigtail available



Applications:

  1. Telecommunication networks
  2. Fiber optic communication networks
  3. Optical access network
  4. Data processing networks
  5. Premise installations
  6. CATV, LAN, WAN, Test &Measurement



Specification:



Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
Fiber Protrusion ≤50nm ≤100nm N/A
Fiber Under Cut ≤100nm ≤100nm N/A
Apex offset ≤50um
Mechanical Exchangeability ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C



Ordering Information:



Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC or APC

Step 3: Fiber Type: Single Mode(SM) or Multimode

Step 4: Cable Core: Simplex or Duplex

Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm

Step 6: Cable Length: 1, 2, 3 meter or customized

Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…

Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...



Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)



Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.
  4. Our patch cord warranty period is one year.



Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)
