Product Details:

Place of Origin: Guangdong, China
Brand Name: TTI
Certification: ROHS, SGS
Model Number: FMC

Payment & Shipping Terms:

Minimum Order Quantity: 5 PCS
Price: Negotiation
Packaging Details: 1PCS/box
Delivery Time: 3-5 days
Payment Terms: T/T, , PayPal, Monthly settlement
Supply Ability: 2000pcs/week
Get Best Price Contact Now

Detail Information

High Light:

optical fiber media converter

,

gigabit media converter

Product Description

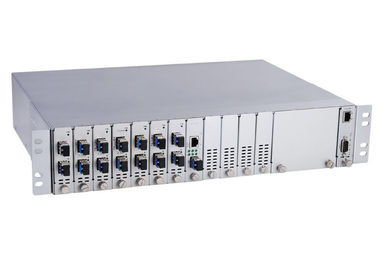

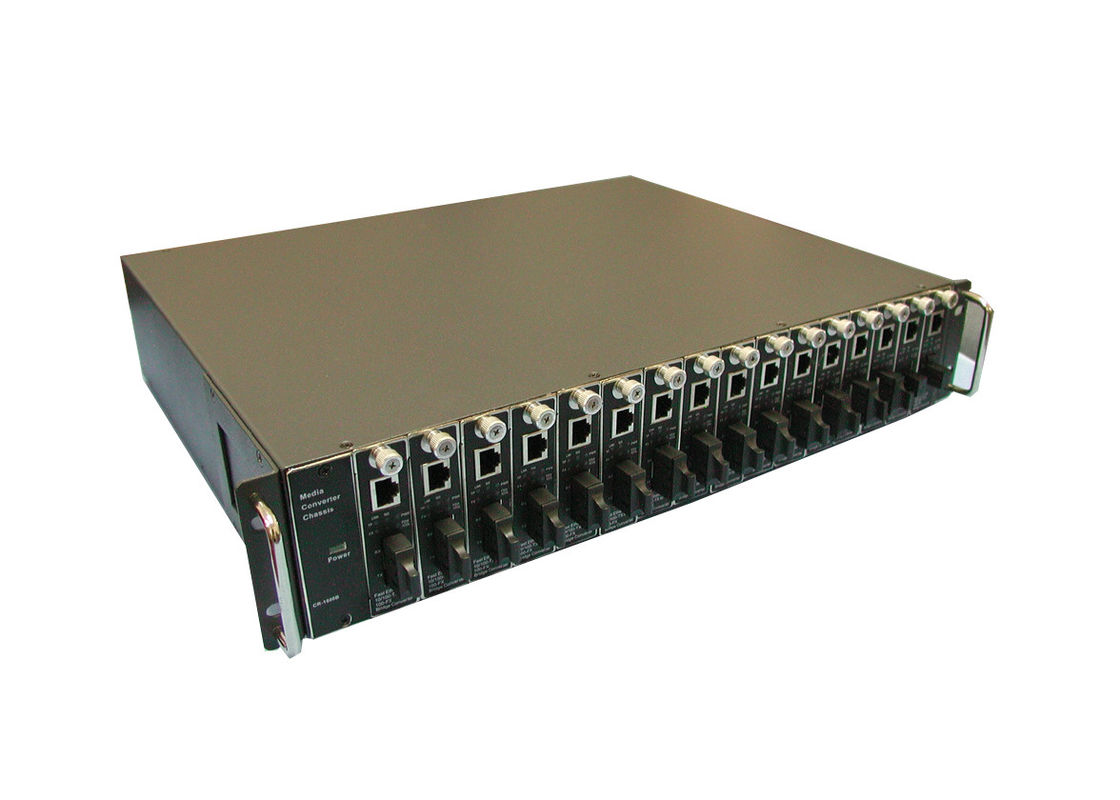

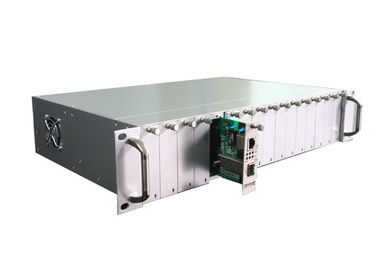

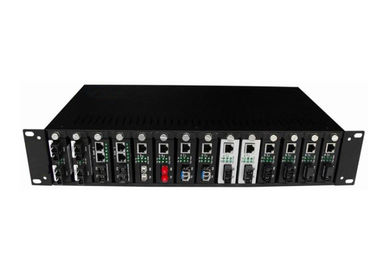

16slots 2 U Rack Mount Fiber Optic Media Converter with automatic switch





Quick Detail:

  1. Structure: 2 U Rack mounted
  2. Operating humidity: 5%~95%(no-condensing)
  3. Power output: DC 5V 1A
  4. Power consumption: 5W
  5. Power input: AC 85~265V 50/60Hz
  6. Operating temperature: -10°C~55°C



Description:



Rack Mounted chassis is a centralized and economical equipment of gather Ethernet media converter together.

It covers two styles, 14 slots and 16 slots and used in plant room with centralized dual power supply and automatic switch. Normal size is 2U but 14 slots is for standalone device and 16 slots is for card style.





Feature:

  1. Function cards supports hot-plugging and each card realizes its corresponding function independently
  2. Double power panel slot supports two power supply units backup for each other
  3. It would enhance the reliability of the rack
  4. Supports 220V AC switch mode power supply (SMPS) design
  5. Main and vice power equipment ensure system work smoothly
  6. Power supply and other parameter state indicator LED can monitor the operation condition of system.
  7. All of the modules installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing modules
  8. Support telecommunication operation requirement completely
  9. Up to14 or 16 available standalone media converter module slots
  10. With stable performance, large capacity of power supply, and easy for management and maintenance



Specification:



Slot quantity Structure Optic interface Height Power supply
14 19" FC ( SC/ST optional) 2U Dual power supply, AC220V
Dual power supply, DC48V
Dual power supply, DC48V+AC220V
16 Dual power supply, AC220V
Dual power supply, DC48V
Dual power supply, DC48V+AC220V
