FC Metal Singlemode / Multimode fiber optic cable adapter for Equipment Test
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | FOA-FC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25pcs/Case |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/day |
|
Detail Information |
|||
| Adapter Type: | Singlemode | Model: | Diamond |
|---|---|---|---|
| Materia: | Metal | Structure: | Simplex |
| High Light: | fibre optic adapter,optical fiber adapter |
||
Product Description

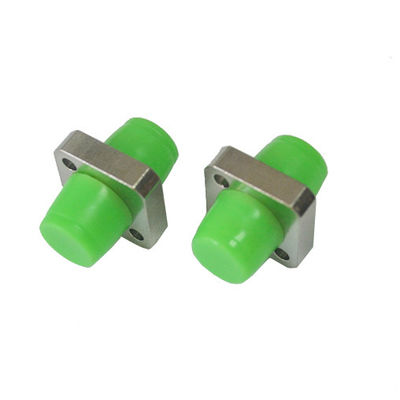

FC Metal Singlemode / Multimode fiber optic cable adapter for Equipment Test
Quick Details
- Type: FC
- Mode: Singlemode and Multimode
- End-face: UPC, APC
- Structure: One body
- Sleeve: Ceramic sleeve, Bronze sleeve
- Housing: Zinc alloy, Bronze
Description:
FC adapter has a metal thread connecting structure.
Features:
- Excellent Insertion Loss
- Good inerchangeability
- Environmentally Stable and Reliable
- Accurate Size
- Applicable standard: IEC 61754-13
- Optional Hybrid adapter
Application:
- Local Area Networks
- CATV System
- Telecommunication Networks
- Equipment Test
Specification:
| Type | SC/FC/ST/LC/MU/MTRJ/MPO |
| Insertion Loss(dB) | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB) | ≤0.2dB |
| Temperature Range | -40°C-+85°C |
| Material of sleeve | Zirconia or Bronze |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
Ordering Information:
FC/UPC-FC/UPC-SM-SX
Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)
Step 4: Mode: Simplex, Duplex
Step 5: Sleeve: Ceramic, Bronze
Step 6: Housing material: Plastic, Metal
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
