Distribution Frames Un-Polished FTTH Solution SC Fast Connector With Fiber
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | QAC-SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/day |
|
Detail Information |
|||
| Product Name: | LC Fast Connector, INST Ftth 32pon+catv Wdm EDFA, Quick Fast Connector, Ftth Node, High Quality Wholesale Ftth Epon Onu /GPON ONU Price ONU Device | Color: | Black, White, Blue, Yellow, Black&White |
|---|---|---|---|
| Type: | GPON OLT, Aerial, ONU/ONT, Wireless, Zte C320 Mini Gpon Olt | Application: | FTTH FTTB FTTX Network |
| Wavelength: | 1490nm TX, 1310/1490nm, 1310nm RX, 1550 Nm, 1528nm~1560nm | Power Supply: | 12V DC, 220V, 100V~240V AC/50Hz~60Hz, 220VAC, DC+5V GND(Module) |
| Weight: | 0.18KG, 3.1kg, 2kg, 4KG, 4.2KG | Connector Type: | LC/APC, 1000BASE-PX20+, SC APC |
| Return Loss: | >=50 DB, PC >45dB UPC >55dB APC >60dB, More Than 55db, ≥45dB | Power Consumption: | <4.2W, 30W, 15W, 6W |
| Fiber Type: | SM MM, 9/125μm SMF, G657A2, G652d | Pon Port: | 1*GPON Port, 2.5G, 2/4/8 PON Ports |
| Material: | Metal, Plastic | Operating Temperature: | 0~70 °C, -40 ~ +85℃, 0 ~ 50 Degrees C |
| Storage Temperature: | -40 - 85, -40~85℃, 30~60°C | Insertion Loss: | ≤0.5dB, <=0.3 DB, PC/UPC/APC< 0.2dB |
| Connector: | RJ45, SC, PON Port, SC/PC | Transmission Distance: | 20KM, 20KM/40KM |
| High Light: | Unpolished FTTH Solution,SGS FTTH Solution,FTTH SC Fast Connector |
||
Product Description

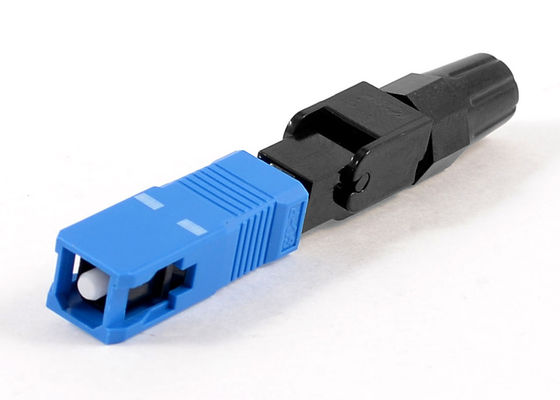

Distribution Frames Un-Polished FTTH Solution SC Fast Connector With Fiber
Description:
Quick assembly connector is used for field-installable optical fiber connector, screw design widely used in FTTH access optical network, include Singlemode and Multimode and suitable for 2*3.0mm drop cable.
Quick Detail:
- Name: SC Fast Connector
- Ferrule end-face: UPC, APC
- Ferrule size: 2.5mm
- Structure: Pre-polished, Un-polished
- Connector: FC, LC, SC
- Fiber: G652D G657A
Feature:
- No special assembling tool
- Quick and easy for assembling
- Reusable and repeat operation times are up to 300
- Integrated protection of the casing to prevent the connector form impact
- Can be installed in two minutes
- Power-save, as it does not need hot melting
- Without any gluing and polishing process
Application:
- FTTH/FTTX/FTTD
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- Connection at the desk for LAN environments
- Terminal box
Specification:
| Applicable for | Drop cable. Indoor cable(2.0/3.0mm) |
| Optical fiber diameter | 125μm |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | <= 0.3dB |
| Return loss | >=50dB |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
| Drop-off test (drop-off height 4m, once per direction, totally 3 times) | IL ≤ 0.5dB RL ≤ 5dB |
Ordering Information:
Step 1: Connector Type: FC, SC, LC, ST
Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm
Step 3: Ferrule End-face: PC, UPC, APC
Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)
Step 5: Mode: Pre-polished, Non-polished
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
1.Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them .
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4.What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
