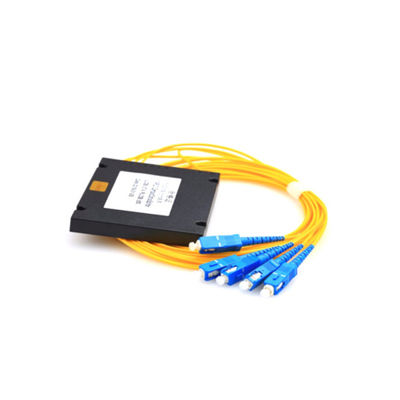

FTTH Passive Fiber Optical Cable Splitter 1x2 Spliter PLC 1x4 1x8 1x16 1x32 1x64 PLC Fiber Optic Splitter
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE/ISO9001 |
| Model Number: | FBT fiber optic splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag to package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, Paypal, |
| Supply Ability: | 2000pcs/day |
|
Detail Information |
|||
| Product Name: | FBT Fiber Optic Splitter | Operationg Wavelength: | 1310/1490/1550 |
|---|---|---|---|
| Operationg Temperature: | -40~+85 | Package: | Steel Tube And ABS |
| Fiber Count: | 1x2/1x4/1x8/1x16/1x32 | Warranty: | 10 Year |
| Fiber Type: | SMF-28e Or Customer Specified, Custom, G.657A With 0.9mm Loose Tube, Singlemode Or Multimode, G657 | Application: | FTTH FTTB FTTX Network, CATV, Splitter, LAN, FTTH FTTB FTTX PON CATV |
| Connector: | SC/APC/UPC, No Connector, SC/APC, SC/LC/FC/ST, FC ST LC SC/APC | Type: | 1x32, 1x16, 1x4, APC, PLC Splitter |
| Connector Type: | LC, ST, FC, SC, SC/APC | Fiber Length: | 1m Or Customized, ≥2m, ≥1.0m, 1.5Meter Or Optional |
| High Light: | PLC Fiber Optic Splitter,1x64 PLC Fiber Optic Splitter,1x32 fiber optic cable splitter |
||
Product Description
FTTH Passive Fiber Optical Cable Splitter 1x2 Spliter PLC 1x4 1x8 1x16 1x32 1x64 PLC Fiber Optic Splitte
1. Feature
Environment stable
Singlemode and multimode available
Low excess loss
Various coupling ratio
2. Application
Long-haul telecommunication s
CATV systems&Fiber optic sensors
Fiber optic communication system
Local area network
3. Specification
| Parameters | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 |
| Operating Wavelength(nm) | 1310/1490/1550 | ||||
| Fiber Type | G657A1 or customer specified | ||||
| Insertion loss (db)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 17/17.4 |
| Loss Uniformity(db) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
| Polarization Dependent loss(db) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 |
| Return loss (db)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Derectivity(db) | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent loss (db) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Temperature Stability(-40~85℃) |
0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
| Operating Temperature(℃) | |||||
| Storage Temperature(℃) | |||||
| Device Dimension (mm) | 40X4X4 | 40X4X4 | 40X4X4 | 50X4X4 | 50X7X4 |
| Module Dimension (mm) | 100X80X10 | 100X80X10 | 100X80X10 | 120X80X18 | 140X115X18 |
| Mini-Module Dimension (mm) | 50X7X4 | 50X7X4 | 50X7X4 | 60X12X4 | 80X20X6 |
4. Product Pictures
5. Advantages
- The FBT splitter offers low cost, common materials (quartz substrate, stainless steel, fiber, hot dorm, GEL), and an adjustable splitting ratio. However, its losses are wavelength-dependent, it offers poor spectral uniformity, cannot ensure uniform spectroscopy, and is temperature sensitive.
- PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting. However, device fabrication process is more complex.
Ordering Information
|
PLCS
|
Port Type
|
Cable Type | Fiber Length | Connector Type | Package Style |
|---|---|---|---|---|---|
|
PLC Splitter |
1*4 1*8 1*16 1*32 1*64 2*32 Others Specify |
0.25mm Bare fiber Ribbon Fiber Fan-out with 0.9mm Loose Tube 2.0mm Cable 3.0mm Cable |
1 meter 2 meter 3 meter Others specify |
FC/APC FC/PC SC/APC SC/PC ST/UPC LC/APC Others Specify |
Stainless steel sleeve Plastic Module 19’’ 1U Rack Mount Others Specify |
6. Company information
7. FAQ:
1.Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them.
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.
4.What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport, airport transport.
