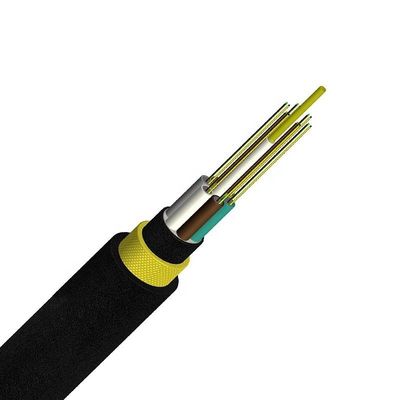

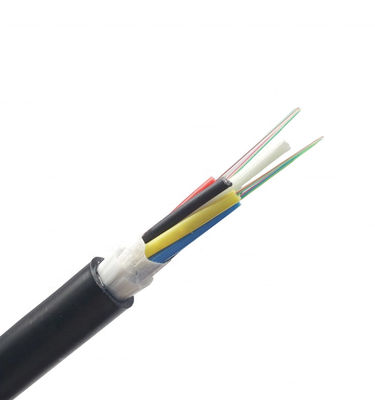

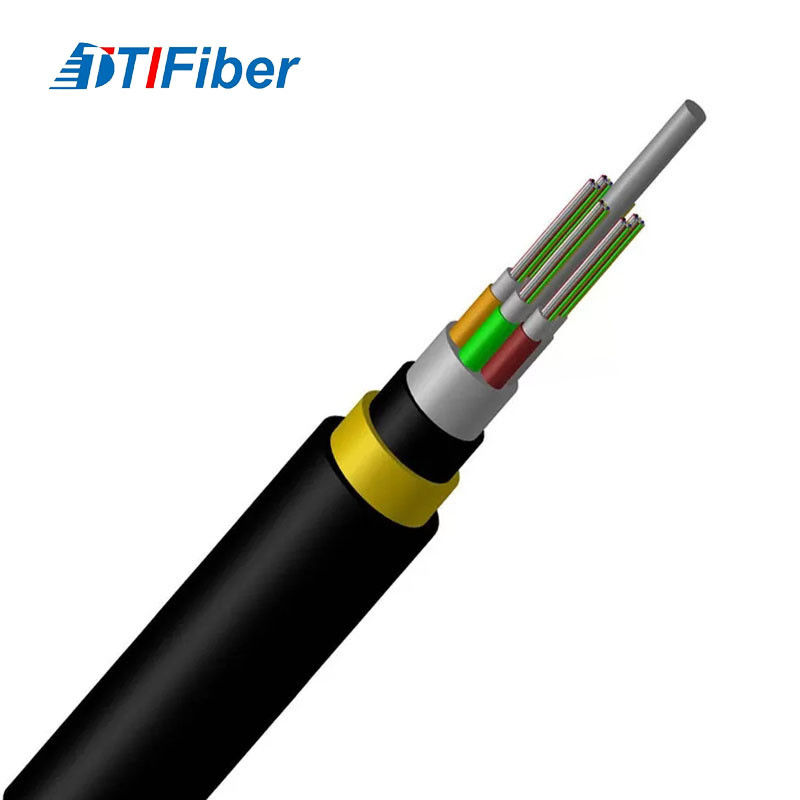

ADSS Fiber Optic Cable 24-144core FRP Central Strength Member Single Mode

ADSS Fiber Optic Cable 24-144core FRP Central Strength Member Single Mode

Product Details:

Place of Origin: China
Brand Name: TTI
Certification: CE RoHS ISO9001
Model Number: ADSS

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: US$0.5-US$6.5/Meter
Packaging Details: wooden drum
Delivery Time: 3-7 work days
Payment Terms: L/C
Supply Ability: 10000 Meter/Meters per Week
Get Best Price Contact Now

Detail Information

Application: Telecommunication Fiber Type: Single Mode
Material: PE Color: Black
Central Strength Member: FRP Type: ADSS Cable, Coaxial
High Light:

Single Mode ADSS Fiber Optic Cable

,

ISO9001 ADSS Fiber Optic Cable

,

adss self supporting fiber optic cable

Product Description

FRP Central Strength Member Communication Use Single Mode ADSS Fiber Optic Cable



Description:

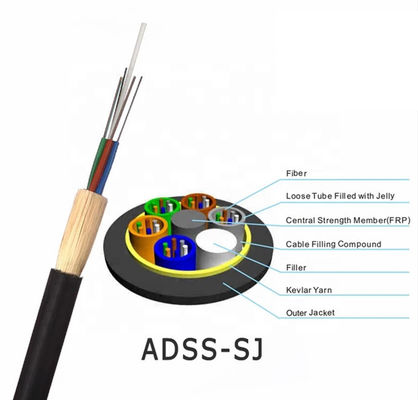

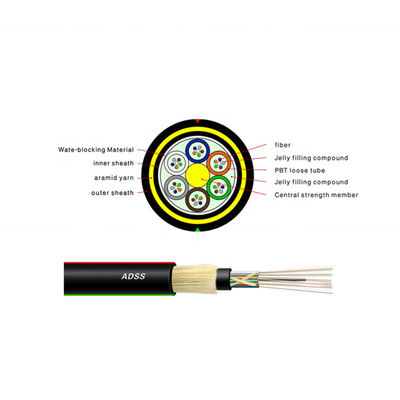

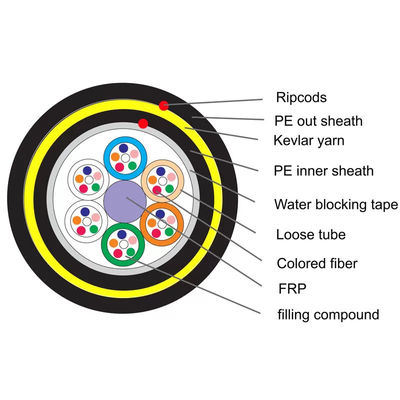

ADSS cable is made of non-metallic material and self-supporting with the aerial power transmission line. The tension resistance material is aramid yarn with high elasticity modules. And optimizing structure can deploy the weight of the cable and its mechanical and physical properties appropriately and minimize the load on the tower. Loose tube construction, tubes jelly filled, elements (tubes and filler rods) and water blocking yarn laid up around non-metallic central strength member,polyester yarns used to bind the cable core, water blocking tape longitudinally wrapped around the cable core, thenaramid yarn reinforced and PE outer sheath.



Characteristics:

Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental friendly.
Structure Innovation in sheath, enhancing the blowing performance.
Proven loose tube design for performance
Small diameter, lightweight and low friction sheath design
Excellent blowing length and fast, safe and cost effective installation
Drycore design for excellent water blocking performance and easier handling
SZ stranding design allows for easy mid-span access and isolates fibers from installation and environmental rigors
Easy installation and removal when necessary





Number of fiber 24-144core
Filling rope 2-0
Moisture Barrier Water blocking system
Central strength member material FRP/FRP with PE
size 2.1mm
Tube-filling Tube filling compoun
filler PP tube/ PVC tube
Inner sheath material PE
Loose tube material PBT
diameter 2.2(outer/inner)
Outer armored material Aluminium tape/Corrugated steel tape
Outer sheath material PE/HDPE
diameter 1.7±0.2mm

Cable Mechanical characteristic

core Cable diameter weight
2 core to 60core 12±0.5mm 140±5kg/km
72core 13±0.5mm 190±5kg/km
96core 14.5±0.5mm 220±5kg/km
144core 16.5±0.5mm 240±10kg/km
Rec.daily max working tension 88kn
Max. Allowable working tension 32.7kn
Modulus of elasticity 37kn/mm2
Min Bending Radius(mm) operation 240mm
installation 390mm
Extra load Extra load 0.5%-0.7%
Ice 5mm
Wind speed 35m/s
