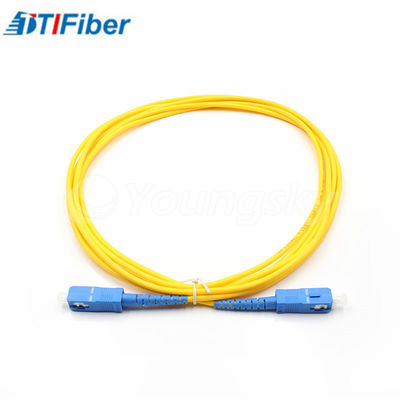

1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application

1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application

    • 1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application
    • 1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application
    • 1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application
  • 1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application

    Product Details:

    Place of Origin: China
    Brand Name: TTI
    Certification: ISO9001; RoHS
    Model Number: SC Duplex Jumper

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pcs
    Price: Negotiation
    Packaging Details: PE bags
    Delivery Time: 3-5 days
    Payment Terms: L/C, T/T, D/A, Western Union, MoneyGram
    Supply Ability: 8000 Pieces per Week
    Contact Now
    Detailed Product Description
    Fiber Type: SM/MM Length: 1M/2M/Customsized
    Ferrule End-face: APC/UPC/PC Application: Telecommunication
    Jacket: PVC/LZSH Color: Orange/Blue/Pink...
    Quality Contral: 100% Test

    Indoor 1M Jumper Fiber Optic Patch Cord Cable Duplex SC Connector Customsized Length



    Description:



    Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Yogel patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three

    kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to

    manufacture so as to ensure the high quality of mass production.

    The 62.5/125μm multimode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.And cable is optically tested for insertion loss to ensure high quality.

    Connector FC to SC Jacket OD 3.0mm
    Fiber Type 62.5/125μm Fiber Count Duplex
    Polish Type UPC to UPC Jacket Material PVC
    Insertion loss ≤0.3dB Interchangeability ≤0.2dB
    Return loss ≥50dB Vibration ≤0.2dB
    Minimum Bend Radius 30mm Storage temperature -40~75°C
    Fiber Grade G.652.D Polarity A(Tx) to B(Rx)




    Features:



    Complies with IEC, Telcordia GR-326-CORE standard

    Low insertion loss and high return loss

    PC/UPC/APC polishing

    Diameter:0.9, 2.0, and 3.0mm

    Fiber jumper of the Single or multi mode is available

    Simplex or duplex is available

    PVC or LSZH fiber optical cable is available

    Excellent changeability and repeatability

    Tensile strength:10N

    Operating temperature range:-40 to 80°C

    Storage temperature range:-40 to 80°C

    Color of fiber optic cable:Yellow (SM), Orange (MM), and Aqua (OM3)



    1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application1M OM1 / OM2 Jumper Fiber Optic Network Cable Duplex SC Connector Indoor Application

    Application:


    FTTX+LAN

    Testing equipment
    Telecommunication

    Optical fiber CATV
    Optical communication system





    Specification:



    Fiber optic Jumper Technical Standard:
    Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB;
    Return Loss: SM PC≥ 50dB, UPC≥ 55dB, APC≥ 65dB;
    MM PC≥ 35dB, UPC≥35dB
    Interchangeability: ≤ 0.2dB
    Salt Spray: ≤ 0.2dB
    Repeatability: (1000 times) ≤ 0.1dB
    Vibration: (550Hz 1.5mm) ≤ 0.1dB
    High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB
    Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB
    Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB
    Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2db
    Apex Offset: 0μ m≤ ≤ 50μ m
    Radius of Curvature: 7mm≤ ≤ 25mm
    Cable Type: Simplex, Duplex, Fan-Out;
    Connector Type: LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI,
    ESCON etc.
    Fiber Mode: SM (single mode) G652D, G655, G657,
    MM (multimode); G651.1 (50/125, 62.5/125, 10Gb/s 50/125)















































    Packaging & Delivery:



    Packaging Details: Individual package
    Port: Shenzhen
    Lead Time : Shipped in 7 days after payment
