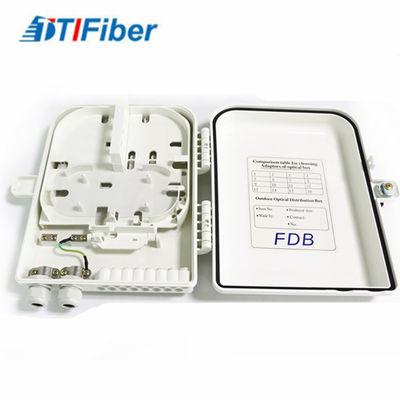

16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted

16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted

    • 16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted
    • 16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted
    • 16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted
    • 16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted
  • 16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted

    Product Details:

    Place of Origin: Guangdong
    Brand Name: TTI
    Certification: RoHS, SGS, ISO9001
    Model Number: 16 Ports FTTH Distribution Box

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: USD 9.64-18.22 Pcs
    Packaging Details: in Bubble bag then in carton
    Delivery Time: 3-5days
    Payment Terms: T/T, Western Union, paypal, L/C
    Supply Ability: 5000 pcs/week
    Contact Now
    Detailed Product Description
    Color: White,Gray Material: ABS,PC
    Output Port: 16 Ports Type: Wall Mounted
    Inlet Port: 4 Port Application: Network,FTTX

    Wall Mounted 16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight


    Description:

    Fiber Optic Splitter Distribution Box is made of high impact plastic. It has industry standard user interface.

    Features:

    • This box could be used for wall-mounted applications;
    • Suit for Outdoor & Indoor.
    • Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.
    • Light weight, small cubage, small installation size, reliable sealing.
    • Could be connected FTTH Drop cables inside.
    • The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.


    Application:


    • FTTH, FTTB, FTTC
    • Telecommunication Network
    • Local Area Network
    • CATV



    Installation:Wall Mounted:

    1 According to the backplane mounting hole’s distance, hit 4 mounting holes on the wall, and knock the plastic expansion sleeve.
    2 Fixed the box on the wall with M8 * 40 screws.
    3 Position the upper end of the box into the wall hole, and then use M8 * 40 screws fix the box on the wall.
    4 Check the box installation, close the door after qualified. In order to prevent rainwater from entering the box, the box should be tightened by a key column.
    5 Insert the outdoor optical cable and butterfly type optic cable according to the construction requirements.

    Product configuration list:


    Product nameModelsQuantityRemark
    Box FTTH terminal box 1pc
    Fiber heat shrinkable sleeveФ1.5×40mm16pcs
    Nylon cable ties3×100mm16pcs
    Expansion boltM8×40mm4pcs
    Key 1pc
    Certificate 1pc
    Instruction 1pc



    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)


    16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted16 Ports FTTH Optical Fiber Distribution Box LC/SC Connectors Light Weight Wall Mounted
