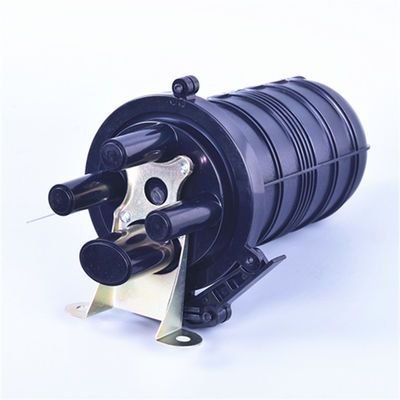

48 Core Fiber Optic Splice Closure Vertical / Dome Type Heat Shrinkable Structure

48 Core Fiber Optic Splice Closure Vertical / Dome Type Heat Shrinkable Structure

    • 48 Core Fiber Optic Splice Closure Vertical / Dome Type Heat Shrinkable Structure
    • 48 Core Fiber Optic Splice Closure Vertical / Dome Type Heat Shrinkable Structure
    • 48 Core Fiber Optic Splice Closure Vertical / Dome Type Heat Shrinkable Structure
  • 48 Core Fiber Optic Splice Closure Vertical / Dome Type Heat Shrinkable Structure

    Product Details:

    Place of Origin: China
    Brand Name: TTI
    Certification: ROHS, ISO
    Model Number: FOSC-H004

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: negotiation
    Packaging Details: Carton
    Contact Now
    Detailed Product Description
    Size: 190*310 Max Splice Tray: 4
    Max Capacity: 48 Cable Port: 2 In,2 Out
    Sealing Structure: Heat Shrinkable Weight: 1.9

    (,2017.12_01



    48 Core Fiber Optic Splice Closure Vertical / Dome Type With High Quality



    Distribution:

    Fifber optic splice closure provide suitable for cable whose diameter is 10-22mm, they can be used in aerial, duct and direct buried application. These products are made of high quality ABS material and with mechanical sealing structure filled with the sealing material.It can be reopened and reused without changing.



    Features:



    1, Four- way cable entries and exists design

    2, Can be reopened

    3, Can be fixed by metal work

    4, Clear optical fiber cable

    5. Closure body is made by Super ABS material, and the bolt was made in stainless steel

    6 Great corrosion resistance

    7. Suitable for any harsh environment

    8. Max capacity:144 cores

    9. All the index reach the YD/T814-2004



    Installation procedure:



    1. Open the closure

    2. Fix the cable and check its length in the closure

    3. Strip off the cable and cable jacket

    4. Seek out the cable cores and get preparation for cable fixation

    5. Fix the strengthen cores and reorganize the extra cores

    6. Fix the cable an splice the cable

    7. Arrange the splice protective tube and fiber

    8. Complete inspection

    9. Install the dome.



    Specification:





    Type FOSC-H001 FOSC-H002 FOSC-H003 FOSC-H004 FOSC-H005 FOSC-H006
    Size(mm) 435*190*85 435*190*120 435*190*120 435*190*80 435*190*170 420*150*110
    Cable diameter(mm) Φ 10 –Φ 17 Φ 10 –Φ 22 Φ 10 –Φ 22 Φ 10 –Φ 17 Φ 10 –Φ 22 Φ 10 –Φ 23
    Max capacity(core) 96 168 192 96 288 96
    Cable port 2 in, 2 out 4 in, 4 out 3 in, 3 out
    Sealing structure Sticky cincture
    Weight(kg) 2.6 2.8 2.6 2.3 4.7 2



    Uses and properties:



    It is belonged to open structure airproof tie-in system of machine pressure.

    It is used for the protective connection between two or more optical cables

    Suitable for single core fiber optic cable and ribbon fiber optic cable



    Shipping:



    1.Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)

    2.Airport to Airport: by air

    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
