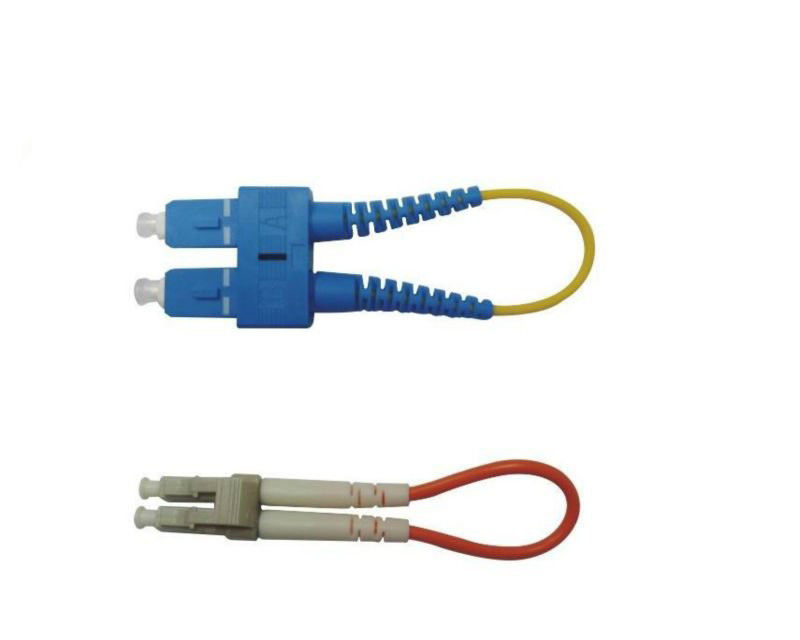

SC LC MPO Fiber Optic Loopback optical fiber cable patch telecommunication with CE

SC LC MPO Fiber Optic Loopback optical fiber cable patch telecommunication with CE

    • SC LC MPO Fiber Optic Loopback optical fiber cable patch telecommunication with CE
    • SC LC MPO Fiber Optic Loopback optical fiber cable patch telecommunication with CE
  • SC LC MPO Fiber Optic Loopback optical fiber cable patch telecommunication with CE

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: TTI
    Certification: CE / ROHS
    Model Number: loopback

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Pieces
    Price: USD 2.5-3.2 / Piece
    Packaging Details: Boxes
    Delivery Time: 5-7 work days
    Payment Terms: LC , T/T, D/A, D/P, Western Union, MoneyGram,Paypal
    Supply Ability: 1000 pieces / day
    Contact Now
    Detailed Product Description
    Name: Fiber Loopback Type: Loopback
    Application: Telecommunication Color: Black/yellow/grey/blue
    Material: ABS Certification: CE / ROHS

    SC LC MPO optical fiber cable patch telecommunication loopback with CE



    Features

    1. Loopback cable for many test applications

    2. Multimode, 50/125 or 62.5/125 fiber optic cable; Single mode, 9/125 fiber optic cable

    3. SC connectors with precision ceramic ferrule for maximum optical performance

    4. Molded connector to secure connection

    5 Fully tested cables to ensure superior quality and durability

    6. Jacket Style: PVC or LSZH

    7. Operating Wavelength: 850 nm (Multimode), 1310nm (Single mode)

    8. Insertion Loss: <=0.30 dB (direct test)

    9. Return Loss: >=50dB(SM), >=20 dB(MM)

    10.Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit Ethernet







    Specification



    Item Single mode Multi mode
    Fiber diameter 9/125um 62.5/125um 50/125um
    Insertion loss PC0.3dB APC0.2dB PC0.3 dB
    Return loss PC45 dB APC60 dB PC25 dB
    Insertpull test (1000 times)0.3 dB
    Interchange 0.2 dB
    Operation temperature -40°C ~ +80°C
    Anti-tensile force 15kgf

    SC LC MPO Fiber Optic Loopback optical fiber cable patch telecommunication with CE
